DC Combiner Box-Non Intelligent without Diode-Model MGV-DCPV4---HA18 Type Distribution Box (1000V)
- Model：
- MGV-DCPV4
- Each channel has a fuse.
- The shell adopts ABS/PC HA type distribution box, with a beautiful structure and built-in visual window, and an integrated portable design.
- Ensure that the components are installed without shaking or deformation during operation.
- Equipped with solar photovoltaic DC high-voltage lightning arrester, both positive and negative electrodes have dual lightning protection function.
- The protection level is IP65, which is waterproof, dust- proof, rust proof, and salt spray proof, meeting the requirements for outdoor installation
- DC withstand voltage values of DC1000V , safe and reliable.
- Installation and maintenance are simple, convenient, and have a long service life.
- Except for core components, others can be customized according to user requirements.

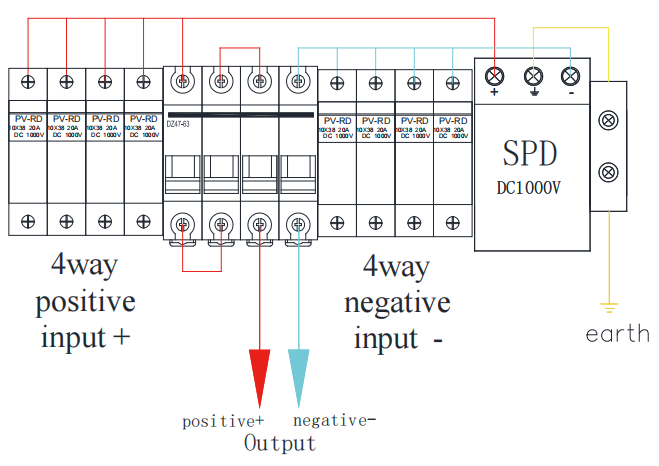

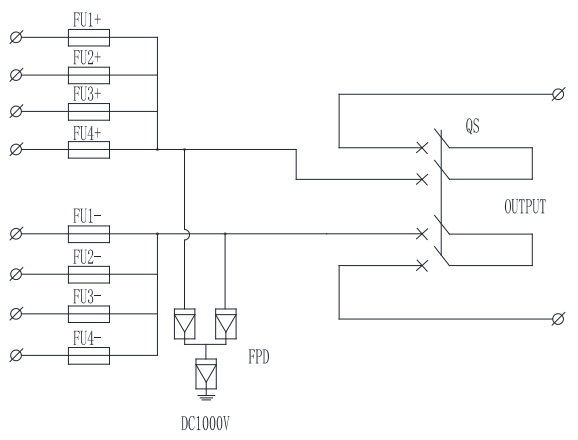

Technical Parameter
| Model | MGV-DCPV4 |
| Sytem DC Voltage | 1000V |
| Each Input Current | 20A |
| Number of Input | 4 Strings |
| Max. Output Current | 80A |
| Number of Output | 1 |
| Lightning Protection | |
| Test Category | II |
| Nominal Discharge Current | 20kA |
| Max. Discharge Current | 40kA |
| Voltage Protection Level | 3.8kV |
| Max. Voltage | 1000V |
| Number of Poles | 3P |
| Structural Characteristics | Pluggable module |
| Protection Level | IP65 |
| Output Switch | DC circuit breaker (standard)/DC isolator switch (optional) |
| MC4 Connector | Optional |
| PV DC Fuse | Standard |
| PV DC SPD | Standard |
| Monitor Module | No |
| Diode | No |
| Heat Dissipation Plate | No |
| Shell Material | ABS+PC |
| Installation Mothed | Wall-mounted |
| Working Temperature | -25°C '~+55°C |
| Altitude | 2000M |
| Permissible RH | 0-95%, no condensation |
