DC Combiner Box-Non Intelligent with Diode-Model MGV-DCPV4---Buckle Type Shell (1000V)
- Model：
- MGV-DCPV4

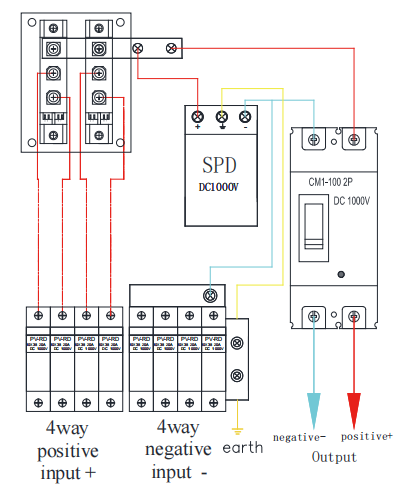

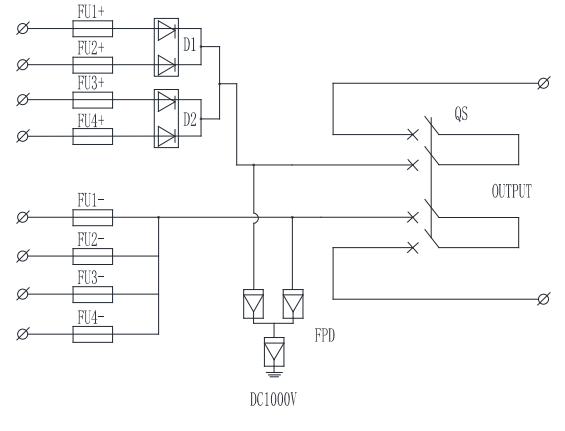

- Added anti reflection diodes to prevent the busbar from flowing back to lower voltage components and damage caused by thermal spots caused by circulating currents between components.
- Each channel has a fuse.
- The shell is made of ABS/PC plastic buckle box, which is lightweight, beautiful, stable in performance, and fully insulated for protection.
- Ensure that the components are installed without shaking or deformation during operation.
- Equipped with solar photovoltaic DC high-voltage lightning arrester, both positive and negative electrodes have dual lightning protection function
- IP65, which is waterproof, dust-proof, rust proof, and salt spray proof, meeting the requirements for outdoor installation.
- DC withstand voltage values of DC1000V , safe and reliable
- Installation and maintenance are simple, convenient, and have a long service life.
- Except for core components, others can be customized according to user requirements.
Technical Parameter
| Model | MGV-DCPV4 |
| Sytem DC Voltage | 1000V |
| Each Input Current | 20A |
| Number of Input | 4 Strings |
| Max. Output Current | 80A |
| Number of Output | 1 |
| Lightning Protection | |
| Test Category | II |
| Nominal Discharge Current | 20kA |
| Max. Discharge Current | 40kA |
| Voltage Protection Level | 3.8kV |
| Max. Voltage | 1000V |
| Number of Poles | 3P |
| Structural Characteristics | Pluggable module |
| Protection Level | IP65 |
| Output Switch | DC circuit breaker (standard)/DC isolator switch (optional) |
| MC4 Connector | Optional |
| PV DC Fuse | Standard |
| PV DC SPD | Standard |
| Monitor Module | No |
| Diode | Yes |
| Heat Dissipation Plate | Yes |
| Shell Material | ABS (Optional) |
| Installation Mothed | Wall-mounted |
| Working Temperature | -25°C '~+55°C |
| Altitude | 2000M |
| Permissible RH | 0-95%, no condensation |
