DC Combiner Box -Non Intelligent with Diode-Model MGV-DCPV8---Steel Shell (1000V)
- Model:
- MGV-DCPV8
- Added anti reflection diodes to prevent the busbar from flowing back to lower voltage components and damage caused by thermal spots caused by circulating currents between components.
- Each channel has a fuse.
- The shell is made of cold rolled steel, and the cabinet structure is safe and reliable, with sufficient mechanical strength.
- Ensure that the components are installed without shaking or deformation during operation.
- Equipped with solar photovoltaic DC high-voltage lightning arrester, both positive and negative electrodes have dual lightning protection function
- IP65, which is waterproof, dust-proof, rust proof, and salt spray proof, meeting the requirements for outdoor installation.
- DC withstand voltage values of DC1000V , safe and reliable
- Installation and maintenance are simple, convenient, and have a long service life.
- Except for core components, others can be customized according to user requirements.

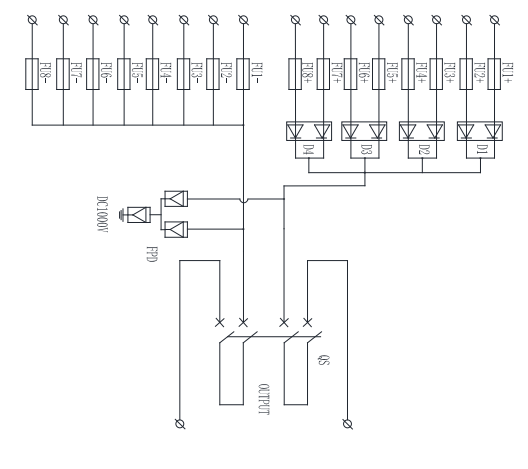

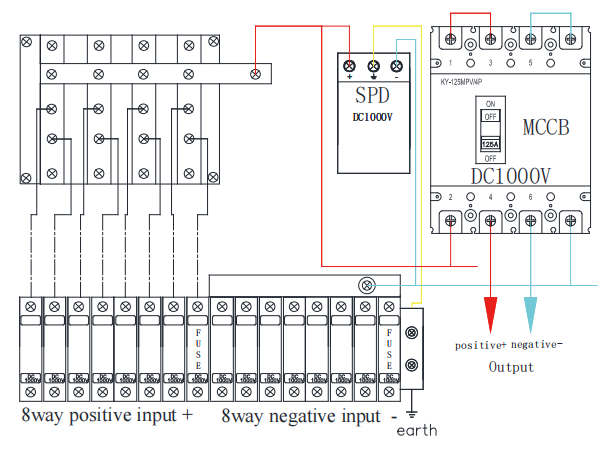

Technical Parameter
Model | MGV-DCPV6 |
Sytem DC Voltage | 1000V |
Each Input Current | 15A |
Number of Input | 8 Strings |
Max. Output Current | 120A |
Number of Output | 1 |
Lightning Protection | |
Test Category | II |
Nominal Discharge Current | 20kA |
Max. Discharge Current | 40kA |
Voltage Protection Level | 3.8kV |
Max. Voltage | 1000V |
Number of Poles | 3P |
Structural Characteristics | Pluggable module |
Protection Level | IP65 |
Output Switch | DC circuit breaker (standard)/DC isolator switch (optional) |
MC4 Connector | Optional |
PV DC Fuse | Standard |
PV DC SPD | Standard |
Monitor Module | No |
Diode | Yes |
Heat Dissipation Plate | Yes |
Shell Material | Cold rolled steel (Optional) |
Installation Mothed | Wall-mounted |
Working Temperature | -25°C '~+55°C |
Altitude | 2000M |
Permissible RH | 0-95%, no condensation |
