Scope of application
The ELR2 series DC isolation switch adopts a plastic shell and is suitable for residential or commercial photovoltaic systems with a power output of 1-20KW. It is placed between the photovoltaic module and the inverter. The arc time is less than 8ms, making the solar system safer. Our products are made from the best quality components. The maximum voltage can reach 1200VDC. Leading in safety among similar products.
Product model and meaning
| MG | DISF | DC | □ |
| ① | ② | ③ | ④ |
| ①Enterprise code | ②Waterproof isolation switch | DC | Rated current：1、2、3-50A |
Usage environment
- Surrounding air temperature: -40 ℃~+90 ℃;
- Installation location altitude: ≤ 2000m;
- Environmental humidity: ≤ 95% at+20 ° C+ ≤ 50% at 40 ° C;
- Special measures should be taken for occasional condensation caused by changes;
- Pollution level: 3 (in a medium without explosion risk, and in a place where the medium is not sufficient to corrode metals and damage insulation with gases and conductive dust);
Characteristic
- IP66 rated housing, UV resistant
- 4×M20 Tapping holes
- The handle can be padlocked in the "OFF" position
- Optional MC4 plug for easy connection and space saving
- 2-pole and 4-pole feasible (single/double string)
- Standard：IEC60947-3、AS60947.3
- DC-PV2、DC-PV1、DC-21B
- 16A、25A、32A、1200VDC
Technical Parameter
| Electrical characteristics | |
| Types of | FMPV16-ELR2、FMPV25-ELR2、FMPV32-ELR2 |
| Role | Isolator, control |
| Standard | IEC60947-3，AS60947.3 |
| Utilization category | DC-PV2/DC-PV1/DC-21B |
| Pole | 4P |
| Rated frequency | DC |
| Rated operational voltage (Ue) | 300V、600V、800V、1000V、1200V |
| Rated working voltage (le) | See next page |
| Rated insulation voltage (Ui) | 1200V |
| Conventional free air thermal current (lth) | // |
| Conventional enclosed thermal current (lth) | Same as le |
| Rated short-term withstand current (lcw) | 1kA, 1 second |
| Rated pulse withstand voltage (Uimp) | 8.0 kV |
| Overvoltage category | || |
| Isolation applicability | Yes |
| Polarity | Polarity“+”and “-” cannot be interchanged |
| Service life/cycle operation | |
| Motorized | 18000 |
| Electricity related | 2000 |
| Installation environment | |
| Entrance protection device | Shell IP66 |
| Storage temperature | -40°C~+85℃ |
| Installation type | Vertical or horizontal |
| Pollution level | 3 |

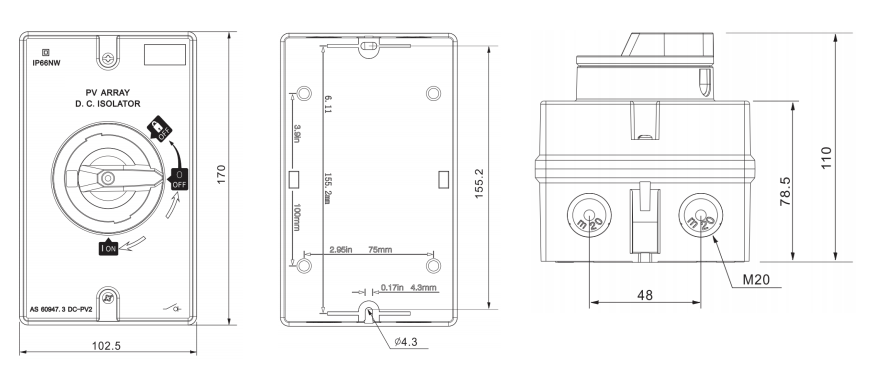

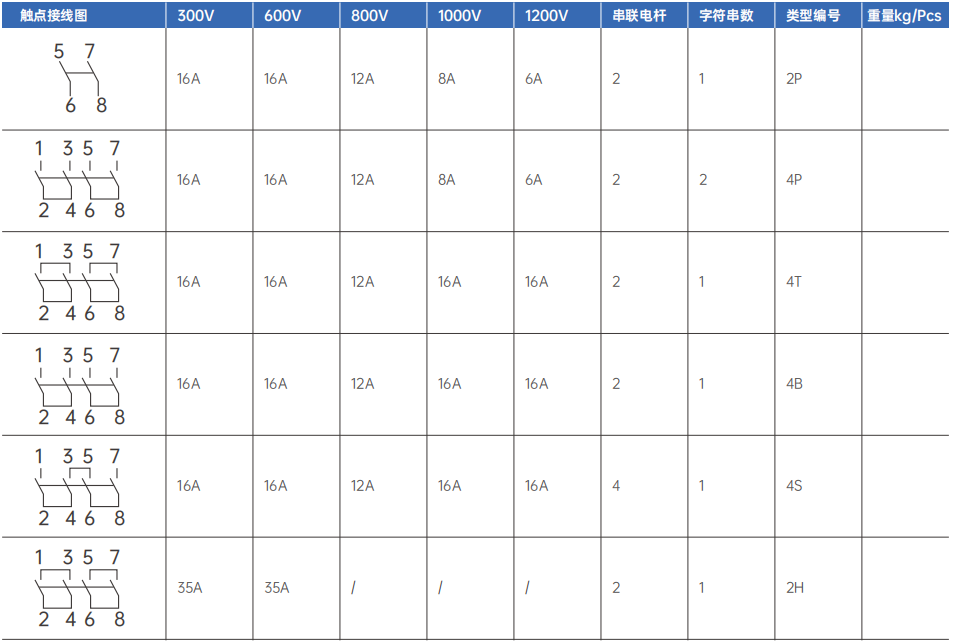

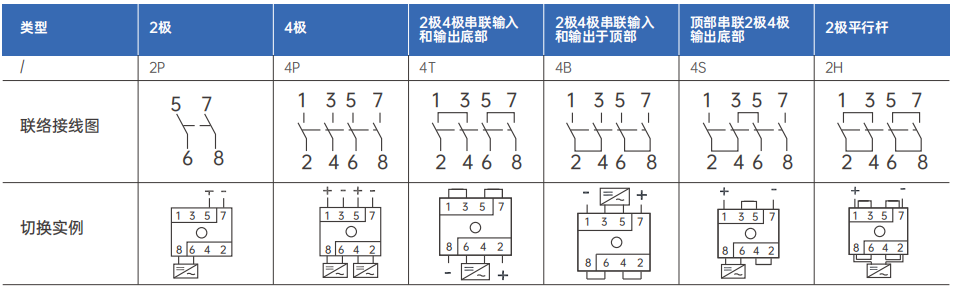

FMPV16-ELR2系列

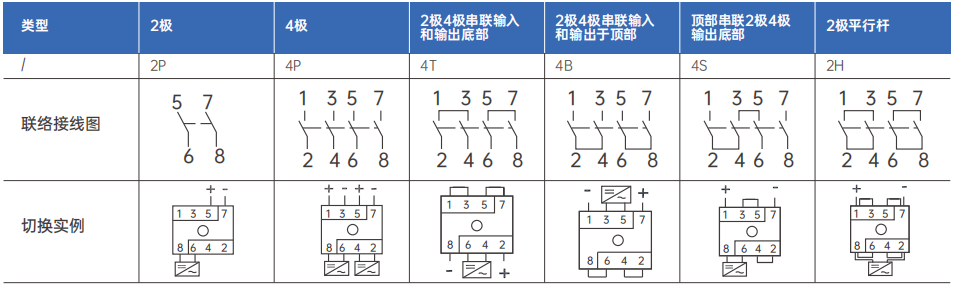

切换配置

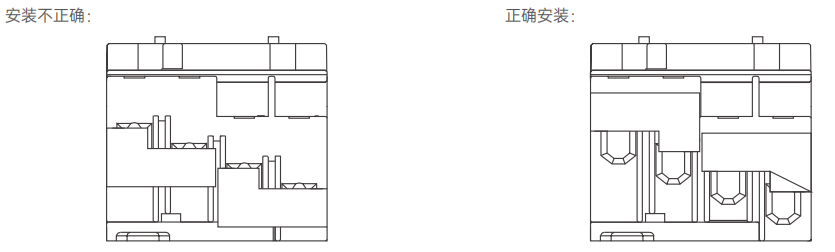

桥接链路安装

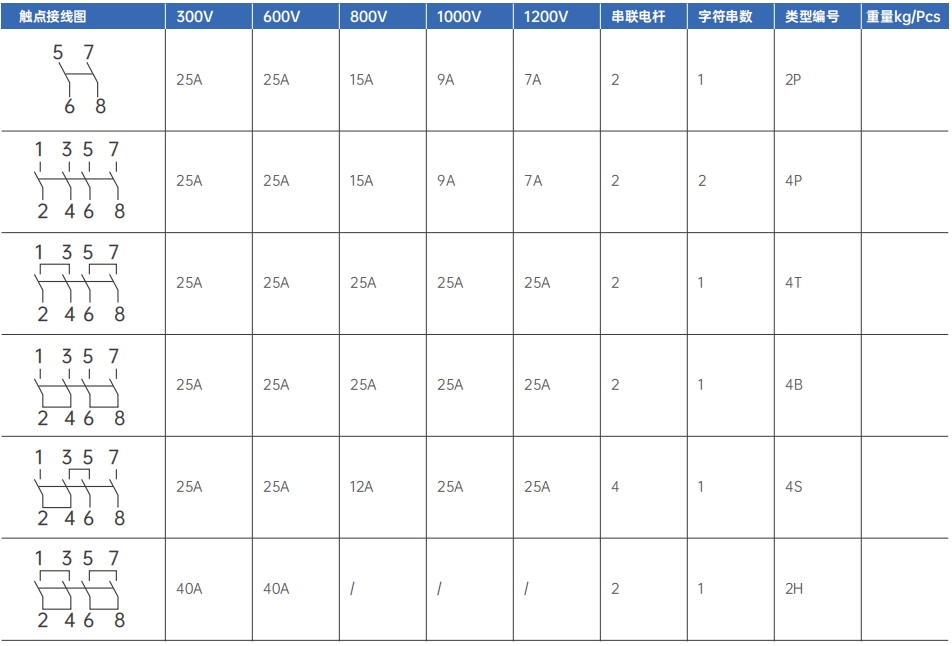

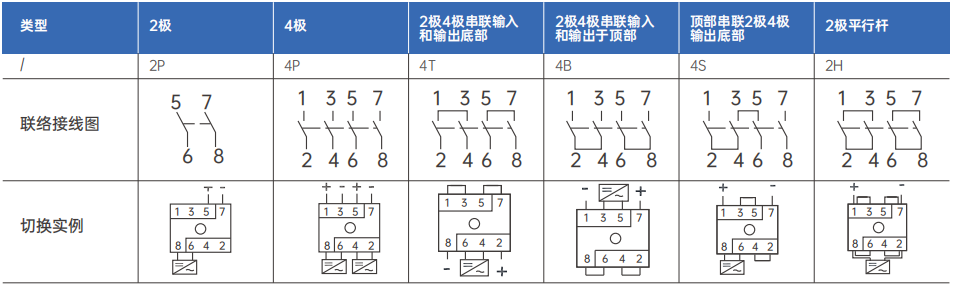

FMPV25-ELR2系列
切换配置

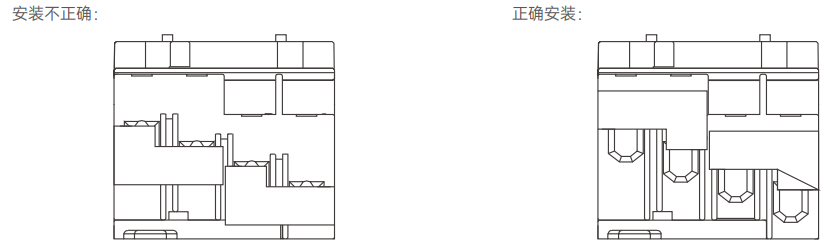

桥接链路安装

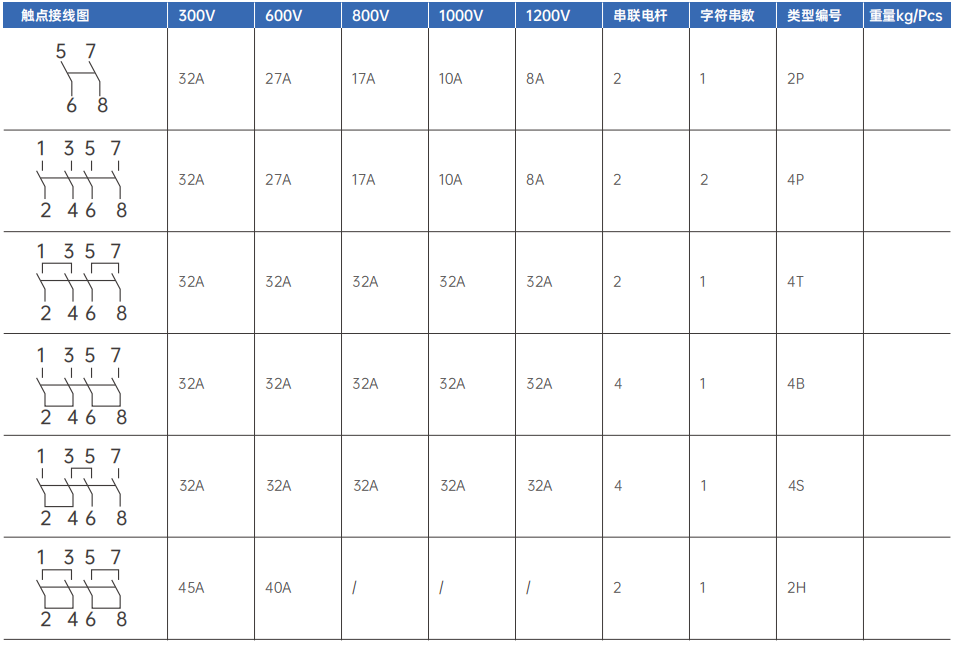

FMPV32-ELR2系列
切换配置

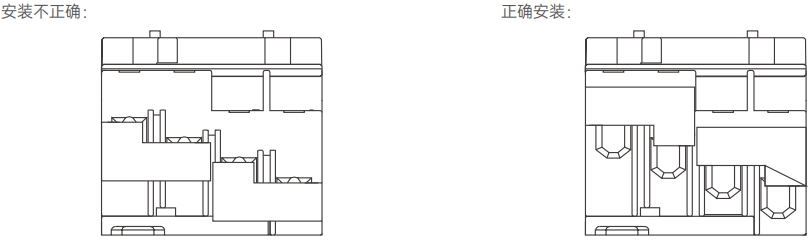

桥接链路安装
