- Consolidate the output current of multiple inverters while protecting the inverters from harm from the AC grid connection side/load. As the output disconnection point of the inverter, it improves the safety of the system and protects the safety of installation and maintenance personnel.
- It can meet the requirements of long-term outdoor use. The box structure is moisture-proof, UV resistant, anti-aging, and easy to dissipate heat. All components are of domestic/foreign well-known brands, have the certification of authoritative institutions, and have complete qualifications. The incoming and outgoing circuit breakers are vertically installed in the positive direction and laid flat on the box. The wiring is one-to-one corresponding to avoid wrong wiring.
- The main road is connected by red copper bars, and the surface of the copper bars is treated with anti-corrosion and oxidation resistant tin plating.
- Each phase line is marked with industry-wide common colors, which are clear and eye-catching.。
- Optional intelligent monitoring system (system voltage, main circuit current, switch status, lightning protection status).
- Suitable for various voltage levels in the industry: 380Vac, 480Vac, 540Vac.
- Rainproof cover design for outdoor installation.

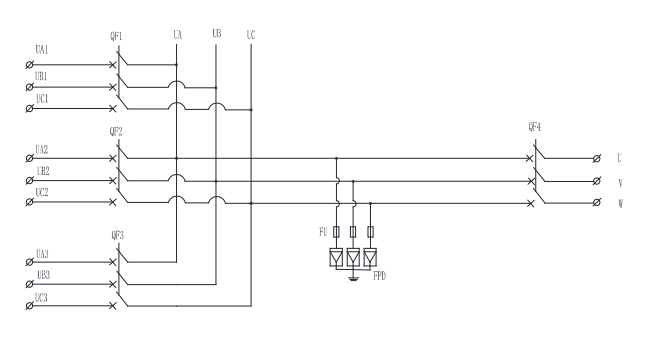

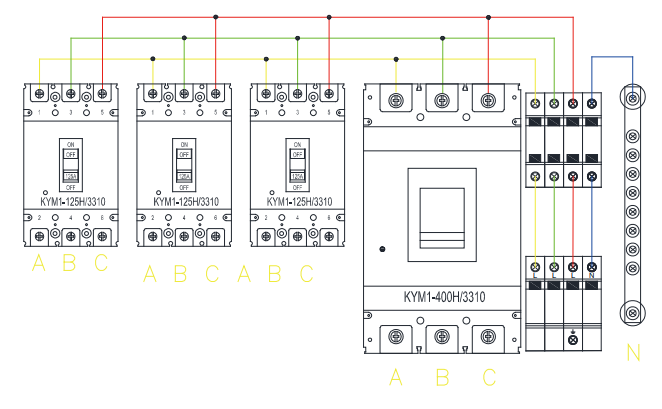

Technical Parameter
| Model | MGV-ACPV3 |
| Number of Inverter Input | 3 （On demand customization） |
| Number of AC Output | 1 |
| Confluence Requirements | Three phase |
| System Voltage（Optioanl） | AC:380V |
| Branch Switch Capacity（Optioanl） | 125A |
| Switch Brand （Optioanl） | Mingguan Electric, Delixi, Chint, Changshu, ABB, Schneider, etc |
| Protection Function | |
| Short circuit Protection | Yes |
| Overload Protection | Yes |
| Lightning Protection | Yes（Nominal current：ln:20KA, lmax:40KA,Up W 4kV） |
| Lightning Protection Failure Protection | Yes |
| Working Environmental | |
| Working Temperature & Humidity | -25 to+60 ° C; Storage temperature: VO to+7 (FC humidity: 0-90%, no condensation, corrosion frost, no corrosive oil gas) |
| Altitude | ＜3000M |
| Salt Spray Resistance | Standard salt spray test for 336 hrs |
| Safety Standard | |
| Copper Bar Selection: | Red copper bar (tin plating industry) |
| Safety Protection | PVC protective plate |
| Electrical Clearance | > 14mm |
| Creepage Distances | > 25mm |
| Insulation Resistance | >20MQ |
| Insulation Voltage | AC3000V, IM IN |
| Shell Box | |
| Cabinet Material | PC / SMC / Cold rolled steel / Stainless steel |
| Protection Level | Out-door IP65 |
| Cabinet Type | Single door distribution box |
| Installation Method | Wall mounting / floor mounting（optional） |
| Box Size（L*W*H） | Custom made |
