Scope of application
The MGSPD series C-class surge protector is suitable for photovoltaic power generation systems. When a surge overvoltage occurs in the system due to lightning or other reasons, the protector immediately conducts within nanoseconds, introducing the surge overvoltage to the ground and protecting the electrical equipment on the grid. The PJ SPD series adopts a plug-in structure, which can be quickly replaced after module failure; After the lightning protection module fails, the color of the indicator window changes from green to red, and an alarm signal is sent to the remote alarm device connected to the remote signal terminal of the product.
Product model and meaning
| MG | T2 | DC | □ | 3 | 1000 | X |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ |
| ①Enterprise code | ②Lightning level | ③DC | ④Maximum flow capacity 40kA | ⑤Number of poles | ⑥Rated current | ⑦Remote signaling |
Usage environment
- The normal range of ambient air temperature is not higher than+40 ℃, not lower than -25 ℃, and the relative humidity is not more than 95%;
- The altitude of the installation site shall not exceed 2000 meters;
- Pollution level 3;
- In a medium with no explosion risk, and there are no gases or dust (including conductive dust) in the medium that are sufficient to corrode metals and damage insulation
Technical Parameter
| Model | MG-T1T2-DC/3P | MG-T2-DC/2P | MG-T2-DC/3P |
| Maximum continuous operating voltage [Uc] | 800VDC/1000VDC/200VDC | 800VDC/1000VDC/1200VDC | |
| Impulse current (10/350) [llmp] | 7kA | ||
| Nominal discharge current (8/20) [In] | 20kA | 20kA | |
| Maximum discharge current [Imax] | 50kA | 40kA | |
| Voltage protection level [Up] | 4.2kA/4.5kA/5.0kA | 3.2kA/4.0kA/4.4kA | |
| Continuous flow [If] | 32A fuse will not be triggered at 2kArms 255V | ||
| Response time [tA] | ≤100ns | ≤25ns | |
| Maximum backup fuse (L) | 200A gL/gG | 125A gL/gG | |
| Maximum spare fuse (L-L) | 125A gL/gG | ||
| TOV voltage | 355V/5sec | ||
| Operating temperature range (parallel circuit) | -40°C...+80°C | -40°C...+80°C | |
| Operating temperature range (series circuit) | -40°C...+60℃ | ||
| Installation wire cross-sectional area | 35mm² solid/50mm² flexible | 1.5mm²-25mm² solid/35mm² flexible | |
| Installation method | 35mm DIN rail | ||
| Housing material | Purple(module)/light gray (base) thermoplastic UL94-VO | Purple(module)/light gray (base) thermoplastic,UL94-VO | |
| Specifications | 2 mods | 1 mod | |
| Testing standards | IEC 61643-1;GB 18802.1;YD/T 1235.1 | IEC 61643-1;GB 18802.1;YD/T 1235.1 | |
| Authentication | CE ROHS ISO9001 CQC TUV | CE ROHSISO9001 CQC TUV | |
| Remote signaling installation connection type | Switching contact | Switching contact | |
| Exchange capacity | 250V/0.5A | 250V/0.5A | |
| Exchange capacity | 250V/0.1A;125V/0.2A;75V/0.54 | 250V/0.1A;125V/0.2A;75V/0.5A | |
| Cross section area of remote communication end wire | Max1.5mm² solid /flexinle | Max.1.5mm² solid/flexinle | |
| Packing unit | 1pc(s) | 2pc(s) | 1pc(s) |
| Weight | 288g | 206g | 283g |

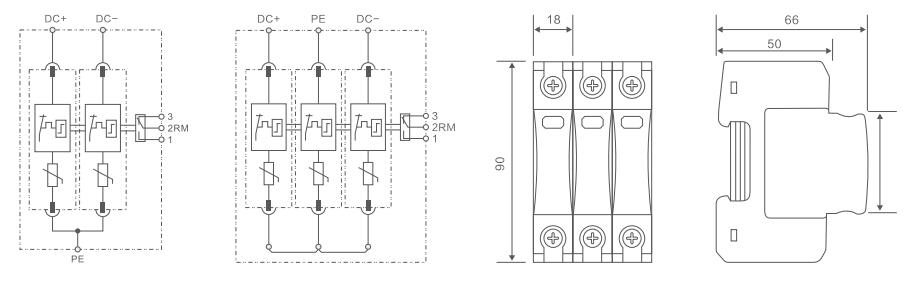

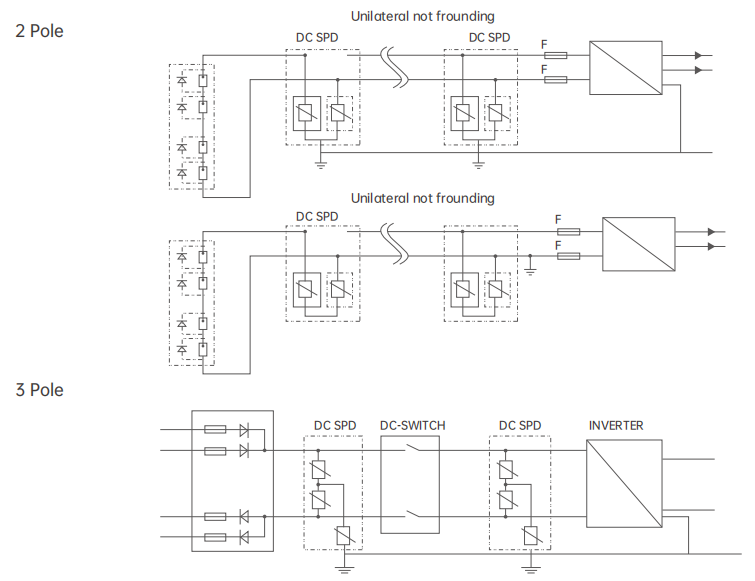

接线图
