Adopting hot-dip galvanized steel plate, the cabinet structure is safe and reliable, with sufficient mechanical strength. The product has a series of protections such as anti islanding protection, voltage closing, voltage loss tripping, low voltage in the power grid, overvoltage in the power grid, input lightning protection, system overcurrent, and power grid isolation.

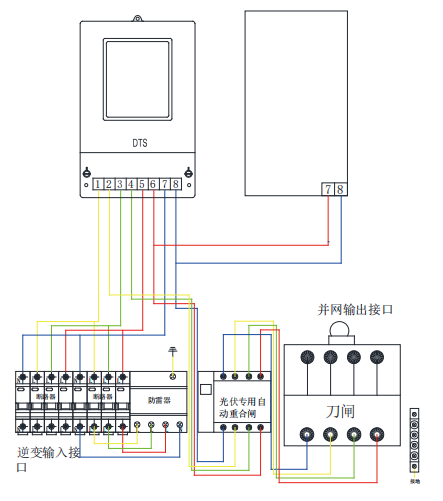

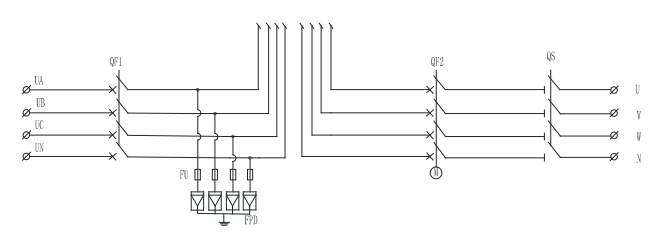

Technical Parameter
| Model | MGF-CD-3（Three-Phase） |
| Power | 3KW~200KW |
| Number of grid connected output channels | 1 channel |
| Grid connection requirements | Single phase/Three-phase grid connection |
| Grid connected voltage | AC:380 |
| Switch capacity | 32A-400A |
| Protection function | |
| Short circuit protection | Yes |
| Overload protection | Yes |
| Lightning Protection | Yes（Nominal current：ln:20KA,lmax:4 0KA,Up W4kV） |
| Isolation protection (visible breakpoint) | Yes（Knife switch/manual isolation switch） |
| Overvoltage and undervoltage protection | Yes |
| Automatic reclosing | Yes |
| Grid connected switch | |
| Self resetting overvoltage and undervoltage protector (optional) 40A-125A | 1. When the power grid loses power or the bias voltage is greater than 20%, it will automatically disconnect (internal disconnection); 2. When the power grid returns to normal, it automatically closes (internally connected); |
| Photovoltaic specialized small reclosing circuit breaker (optional) 20A-100A | 1. When the power grid loses power or the bias voltage is greater than 20%, it will automatically open (the operating handle will act); 2. When the power grid returns to normal, it will automatically close (the operating handle will act); 3. Manual operation and automatic operation can be switched; 4. Check for voltage closing |
| Plastic shell reclosing (optional) 40A-400A | 1. When the power grid loses power or the bias voltage is greater than 20%, it will automatically trip (the delay trip time can be adjusted from 0 to 10 seconds); 2. When the power grid returns to normal, it will automatically close; 3. Manual and automatic operation can be switched; 4. Phase loss protection and zero break protection; 5. Check for voltage closing |
| Environmental suitability | |
| Temperature and humidity | Working temperature: -25 to+60 ° C Storage temperature: -40 to+70 ° C Humidity: 0-90% No frost; Non corrosive gas locations (if any, please specify) |
| Using altitude | W3000M |
| Salt spray resistance | Standard salt spray test for 336 hours |
| General parameter | |
| Cabinet material | Stainless steel, cold-rolled sheet spray coating, stainless steel spray coating, fiberglass (SMC), transparent plastic box |
| Protection grade | Outdoor IP45 / IP55/IP65 |
| Box type | Double door with meter positions (distribution compartment, metering compartment), single door without metering compartment (optional) |
| Installation method | Wall Mount |
| Box size (length, width, height) | On demand customization |
