Scope of application
The rated working voltage of MG1-63 small DC circuit breaker can be as high as DC1200V. This circuit breaker adopts a special arc extinguishing and current limiting system, which can quickly disconnect the fault current of the DC distribution system, protect important components in the solar power generation system, and protect the photovoltaic module from the harm of high DC reverse current and AC feedback current caused by inverter faults, ensuring the reliable operation of the solar photovoltaic power generation system.
Product model and meaning
| MG | 63 | Z | 1 | 10 | OF | DC250V |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ |
| Enterprise code | Series | Shell bracket and rated current | Number of poles: 1P/2P/3P/4P | Rated current (A): 1,3,6,10,16,20,25,32,40,50,63 |
Attachment: OF: Auxiliary switch, SD: Alarm switch, OF+SD: Auxiliary+Alarm, MX: Shunt release | 1P:DC250V.2P:DC500V 3P:DC750V,4P:DC100V |
Usage environment
- For elevations below 2000 meters and above 2000 meters, capacity reduction is required. For other special requirements, please contact the manufacturer;
- The ambient air temperature ranges from -25 ℃ to+40 ℃, and the average temperature within 24 hours does not exceed+35 ℃; When the ambient air temperature is above+40 ℃ or below -25 ℃, please contact the manufacturer;
- The product should be installed in the distribution box in a place with waterproof measures;
Electrical technical parameters
| Name | MG-63 | |||
| Number of poles | 1P | 2P | 3P | 4P |
| Rated voltage (V) | DC250V | DC500V | DC750V | DC1000V |
| Rated current In (A) | 1,2,3,4,6,10,16,20,25,32,40,50,63 | |||
| Rated short-circuit capacity Icn (kA) (T=4ms) | 6(DC250V) | 6(DC500V) | 6(DC750V) | 6(DC1000V) |
| Instantaneous release type | Distribution protection | |||
| Rated impulse withstand voltage Uimp (kV) | 4 | |||
| Rated insulation voltage Ui (V) | 1200 | |||
| Lifetime (times) | Carrying 10000 times, not carrying 20000 times | |||
| Usage environment | Environmental temperature: -25 ° C to+40 ° C | |||
| Can come with attachments | Auxiliary, alarm, and shunt release device | |||
| Maximum wiring capacity | 25mm² | |||
| Certificate | Obtaining CCC, CB, TUV certification certificates | |||
| Load Standard | IEC 6094-1、GB 14048-2、IEC 60898-2、GB 14048-1 | |||

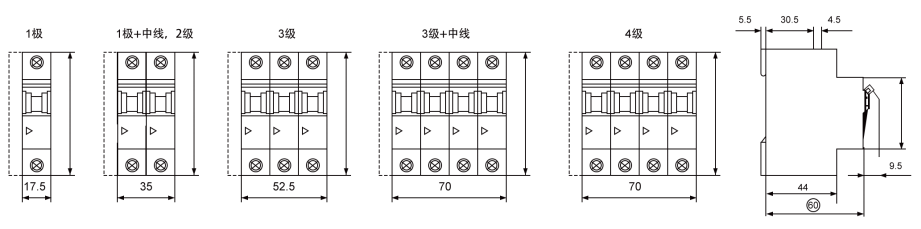

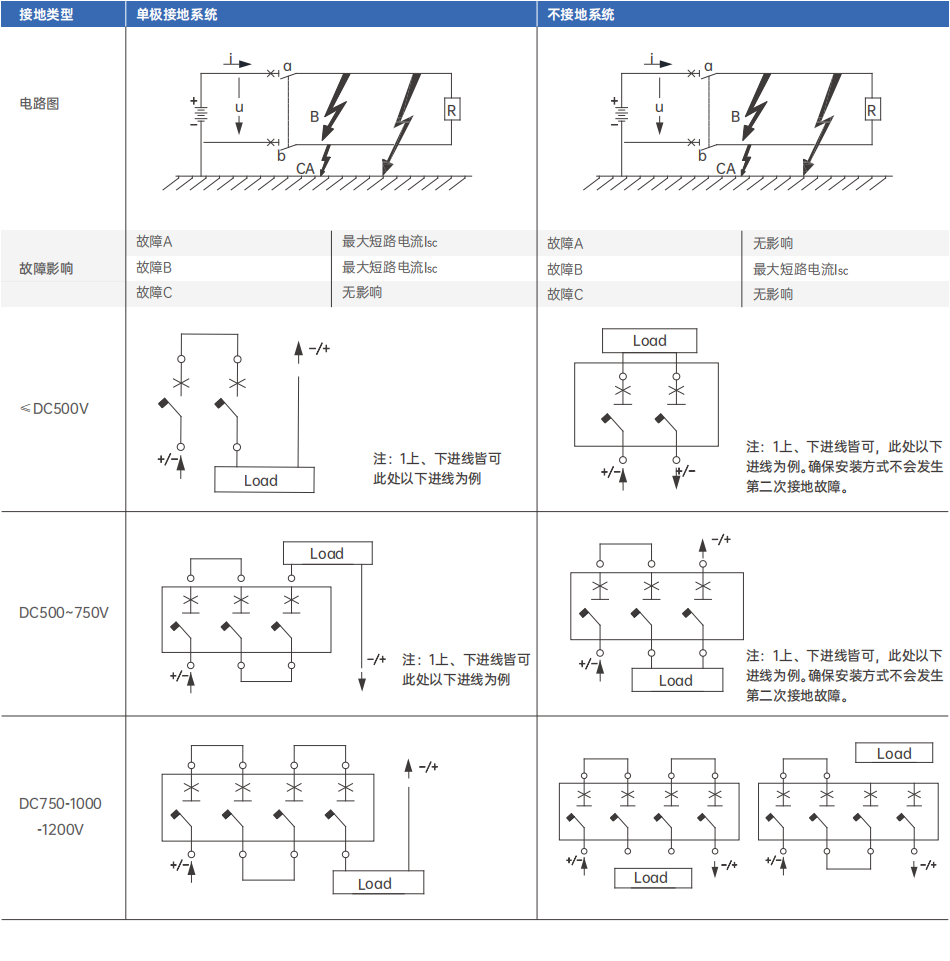

接线方法
